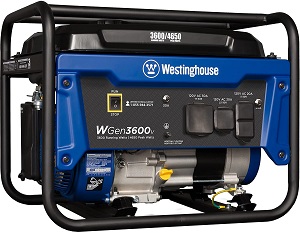

Recommended: Portable Generator for RV 30 Amp Connection: Handy Compact Quiet 30 Amp RV Ready Portable Generator .
This reasonably priced 30 Amp RV Ready Portable Generator is a nice find for anyone on the road in their RV. Provides 3600 Running watts and 4650 Peak Watts of power for you. It’s equipped with an RV Ready TT-30R 30A outlet that conveniently hooks to your travel trailer, keep your air conditioner and travel necessities up and running all day long with an L5-30R outlet and household duplex outlets. With a 4 gallon gasoline fuel tank this Westinghouse portable generator will give you up to 14 hours of run time at 25% on one tank of gas. Generator features a built-in fuel gauge and automatic low oil shutdown.
With the rubber outlet covers you have provided added outlet protection from the environment and rugged conditions. An intuitive control panel makes the WGen3600v genertor simple and easy to use with guided yellow touchpoints.
The Westinghouse WGen3600v Portable Generator is a convenient generator to keep you powered while on the road or at your home during a utility power outage. The WGen3600v RV ready portable generator features a powerful 212cc 4-Stroke OHV Westinghouse Engine with a cast iron sleeve designed for durability.
Westinghouse WGen3600v RV Ready Portable Generator Features...
- The Westinghouse WGen3600v 3600 watt generator operates at a quiet 68 dBA operating volume.
- Power Your RV - This portable generator produces 4650 surge watts and 3600 rated watts from it's 212cc 4 stroke OHV Westinghouse engine, constructed with a durable cast iron sleeve.
- Compact and portable, weighing in at 99.5 lbs.
- Generator includes (1) 1120V Duplex 5-20R outlet, RV 30 amp outlets - (1) 1120V L5-30R outlet and (1) 1120V TT-30R outlet - Outlet covers.
- Comes with oil, oil funnel, tool kit and a user's manual.
- Built-in fuel gauge and automatic low oil shutdown .
- Four gallon gas tank provides 14 hours of run time at 25% load; 10.5 hours at 50% load.
- Generator has an intuitive control panel which makes the WGEN3600v simple and easy to use with guided yellow touchpoints.
- Easy re-coil start.
- EPA and CARB compliant.
- As a Westinghouse product this portable generator is backed by a 1 year limited warranty.
Available Online at: Amazon.com and Ebay.com
Recommended: Portable Westinghouse Generator for 50 Amp RV.

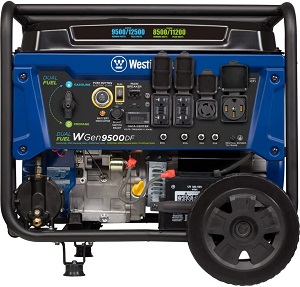

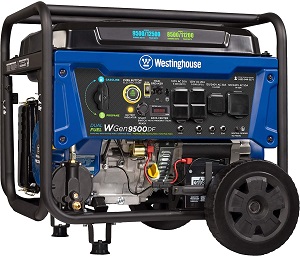

If you need a portable generator with a 50 amp outlet for use with your RV, then you will find this Westinghouse WGen9500DF generator will meet your needs. Features (2) GFCI 120V 5-20R standard household receptacles, (1) RV Ready 120/240V 14-50R, (1) Transfer Switch Ready 120V L14-30R outlet. All outlets on the generator have rubber covers for additional safety. This dual fuel generator provides 12500 peak watts and 9500 rated watts (gasoline) and 11200 peak watts and 8500 running watts when using propane as your fuel source.
.
The WGen9500DF comes with a remote start fob that allows you to start and stop your portable generator from distances up to 260 feet. The generator also has a traditional recoil start, giving you additional starting dependability.
Westinghouse WGen9500DF Generator with 50 Amp Outlet Features...
- This Westinghouse WGen9500DF generator offers a 6.6 gallon gasoline fuel tank capacity and will run 8 hours at half load and 12 hours at 25% load. Propane run time at 50% is 7 hours.
- Outlets: 2 Duplex 120V 5-20R, 1120/240V L14-30R, 1120/240V 14-50R, ST (Transfer) Switch - with rubber outlet covers.
- 4-stroke OHV 457cc engine that runs with a noise level of 74 dBA.
- This Westinghouse generator offers 12500 starting watts and 9500 rated watts to provide adequate power for items in your RV or home..
- Start type: Electric, Remote, Recoil.
- The WGen9500DF has a built-in fuel gauge, automatic low oil shutdown and GFCI outlets. .
- The Push-Button Electric Start on this generator makes starting the WGen9500DF effortless while the remote start key fob offers added on / off ease from a distance.
- This units dry unit weigh is 211 lbs. however it is conveniently portable with an included set of heavy duty never-flat wheels, handle and lift bracket.
- Dual fuel operation easily switches from gas to propane without shutting off unit.
- VFT display on this generator gives you real time updates with the voltage output, frequency, and lifetime hours.
- RV Ready and Transfer Switch Ready.
- This Westinghouse portable generator also comes with a three-year limited residential warranty.
- Carb Compliant.
- 50 Amp Outlet for your RV travels or connect to a transfer switch as a backup power resource for your home.
- Battery is included with the purchase of this portable generator.
Available Online at: Amazon.com and Ebay.com
50 Amp RV Service...
August 8, 2023 - For RVs, you will mainly be dealing with a 30-amp or 50-amp service. Your RV will require one type or the other, and fortunately, there's an easy way to check which type of plug your RV has: 30-amp plugs have three pins, and 50-amp plugs have four pins.
A 30-amp service is more common in smaller RVs with fewer power-hungry appliances. For example, you will usually find only single AC units in 30-amp service RVs. A 30-amp RV plug has a single 120-volt hot pin, a flat neutral, and a round ground pin. Where large RVs usually have a 50-amp service to power their more lavish setups (like double AC units, washer/dryers, etc.). A 50-amp plug has two 120-volt hot pins, a flat neutral pin, and a round ground. A 30-amp RV can handle up to 3,600 watts; a 50-amp RV brings you up to 12,000 watts, so the increase in power is very substantial.
When you know what type of power your RV requires, then it is just a matter of making sure your plugs are the correct size to fit into a given power source; be that your generator or a pedestal at a campground. Adapters are available to allow you to plug RV power cords into different size power source outlets.
With an adapter you can plug your 30 amp RV cord into a 50-amp power receptacle, such as a power pedestal at a campground without worrying about frying your RVs electrical system. However, know that the maximum power you can use is 30 amps, regardless of the receptacle you plug your cord into. So, even if you plug into a 50 amp receptacle you will still be limited to 30 amps. You would only do this if you have a 30 amp RV cord and the only receptacle available to you, say at a campground, is a 50 amp receptacle.
If you use an adapter and plug your 50-amp RV cord into a 30-amp receptacle then you are not going to be operating at full power, so you will be limited with what devices you can run at the same time. If you have an RV with two air conditioners you probably will only be able to run one at a time. Once again you would only do this if a 50 amp receptacle is not availble to you at the time.
To plug your 30-amp or 50-amp RV cord into a portable generator, you will want to use an adapter made specifically for this purpose. Generator plugs come in 3-prong and 4-prong styles, so you'll need to make sure your adapter fits your generator's plug style. Be aware that these styles have nothing to do with whether the RV cord is 30 amps or 50 amps—30-amp cords can be adapted to fit both 3-prong and 4-prong generator plugs, as can 50-amp RV cords.
One tip is to consider reducing your motorhome's power requirements, such as by installing LED bulbs in place of standard bulbs or replacing the microwave with a smaller one requireing less wattage.
30 Amp to 50 Amp RV Adapter Cord on Amazon

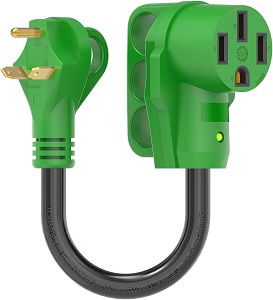

This RVGUARD 30A male to 50A female adapter allows you to simply convert the 30 Amp power at a campground to fit for your 50A RV.
Adapter has an LED power indicator that glows green when the power cord is connected to the power source. The RVGUARD disconnect handle makes it easier to plug in and unplug without damaging the cable. Copper wiring, durable and weather resistant 10/3 Gauge STW jacket, for outdoor and indoor use, flame-retardant.
Purchase Online At: Ebay.com and Amazon.com
